Add TrafficSign
In order to obtain the plane position correctly, users need to turn on the mouse hover.
Steps
1.In the Road Facilities panel, click on the drop-down sign on the right and select Add TrafficSign
button.
2.The Settings dialog box should pop up. Select the shape the user wants to draw:
Dialog box
Parameter description:
- In order: round signs, triangular signs, rectangular signs.
3.Circle and triangle sign drawing: After selecting the shape to be drawn, the graphics to be drawn will be displayed on the mouse. Place the mouse on the center of the sign point cloud, use the shortcut keys to rotate, use the right mouse button to bring up the dialog box to adjust the size, Double-click to determine the current sign.
| Shortcut key name | Function |
|---|---|
| R/r | Rotate counterclockwise |
| T/t | Rotate clockwise |
| Right mouse button | Change the size of the vector template |

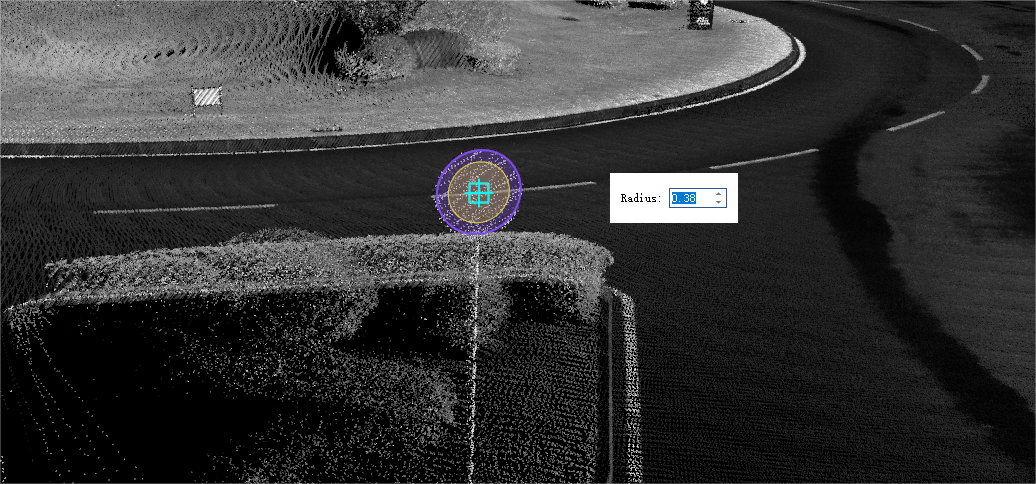

Round sign
Round
Triangle sign
Triangle
4.Rectangular sign drawing: Turn on the point cloud fitting function, click with the left mouse button on the point cloud plane of the road sign to generate a fitting plane, and continue to use the left mouse button to draw a rectangle with three points on the plane to draw a rectangle.
Rectangular sign
Rectangle
