Save

Function Description: This tool allows the user to save the resulting Gaussian model after cropping into a new Gaussian model file.

Steps

Click Save InputFile(s)After the button:

1.First perform the cutting operation to form the cutting result, refer to the inner cutting and outer cutting.

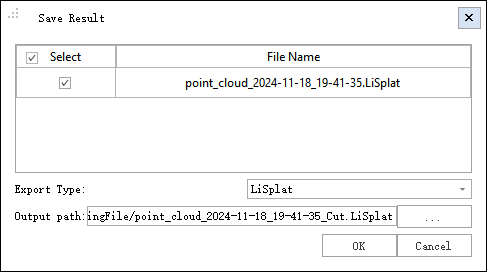

2.In the case of cropping results, this function is activated. Click this function to pop up the save settings interface, as shown in the figure.

3.Select the original Gaussian model data wanted to participate in cropping and saving.

4.Select the directory where the cropped file is saved, and the system will form a new cropped file name based on the original file name and the current system time. The naming rule is Original file name CutResult time information ".export type".

5.When the export type is set to PLY and the LiSplat file contains a skybox, the skybox will be automatically exported as a .sly file with the same name as the .ply file.
