Move Facility

Functional Description: The facility model is further adjusted when the facility position attitude is incorrect due to inaccurate vector position or incorrect initial position of the model symbols.

Steps

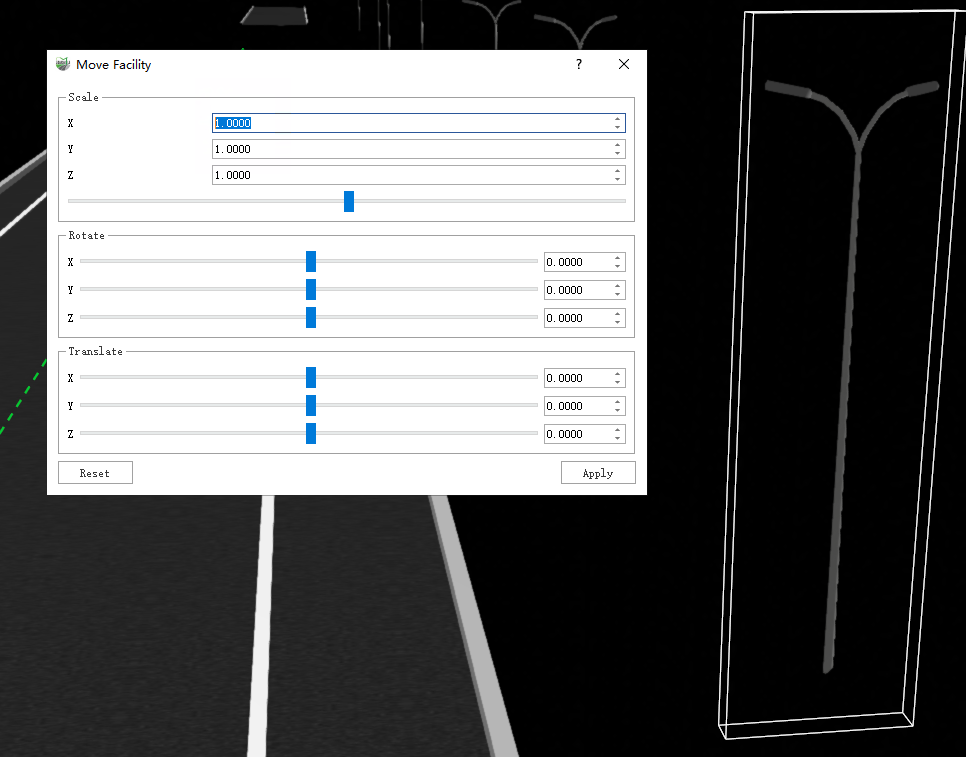

1.Activate the function Click on the facility model, the model is wrapped in a semi-transparent enclosing box and a dialog box pops up.

• Scale: scales the currently selected model
• Rotate: rotate the selected model in the order of xyz of the Euler angle.
• Translate : translate the model in three directions along the scene coordinate system xyz.

</br>

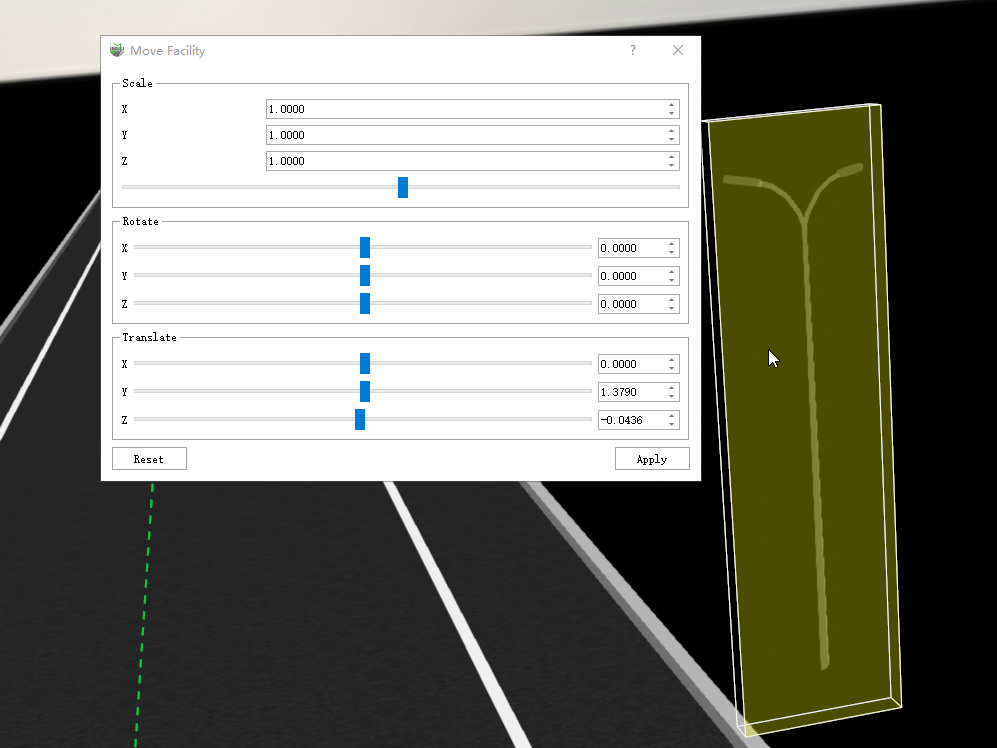

2.Drag and drop any of the 6 planes of the enclosing box to move the model in the virtual plane of the space where that plane is located.

3.Click Reset to discard all current changes and return the facility to its initial state.

4.Click Apply, the model applies the transformation and sets the current state to the initial state, and you can continue editing.
