Camera Setting

Functional Description: View and change camera settings for the currently active 3D view.

Steps

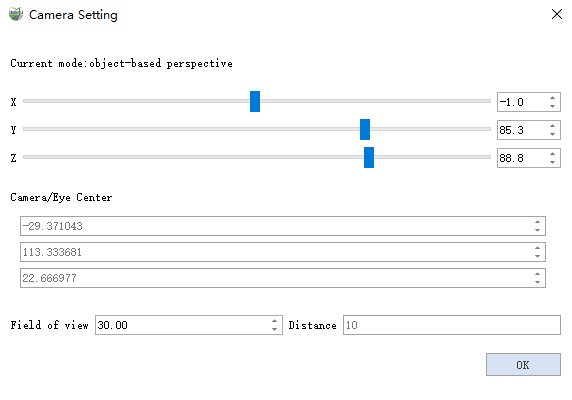

1. click Camera Setting pop-up interface:

2. Set the angular position of the camera in the X, Y and Z directions via the corresponding sliders.

Parameter Settings

• Current mode: Displays the projection method of the current view, including perspective projection and orthogonal projection.
• X: X-direction angular position of the camera.
• Y: Y-direction angular position of the camera.
• Z: Z direction angular position of the camera.
• Camera/Eye Center: This parameter cannot be set manually. It is the real-time viewpoint center position of the camera in the view.
  • First parameter: X position of the camera.
  • Second parameter: Y position of the camera.
  • Third parameter: Z position of the camera.
• Field of view: The angle in the vertical direction of the field of view.
• Distance: The distance to the viewpoint cannot be set manually. It is the real-time distance between the camera and the viewpoint.

  Note: This function is only for the 3D mode of the view and cannot be set in the 2D mode.
