Trajectory Segmentation

Split by Polygon

Steps

1.Click Draw Polygon button.

2.Click the mouse around the area of interest in the 3D display window to select multiple points and draw polygons.

3.Click Split Trajectory button to divide the track segments in the polygon area.

Select on Trajectory

Steps

1.Click Select on Trajectory button.

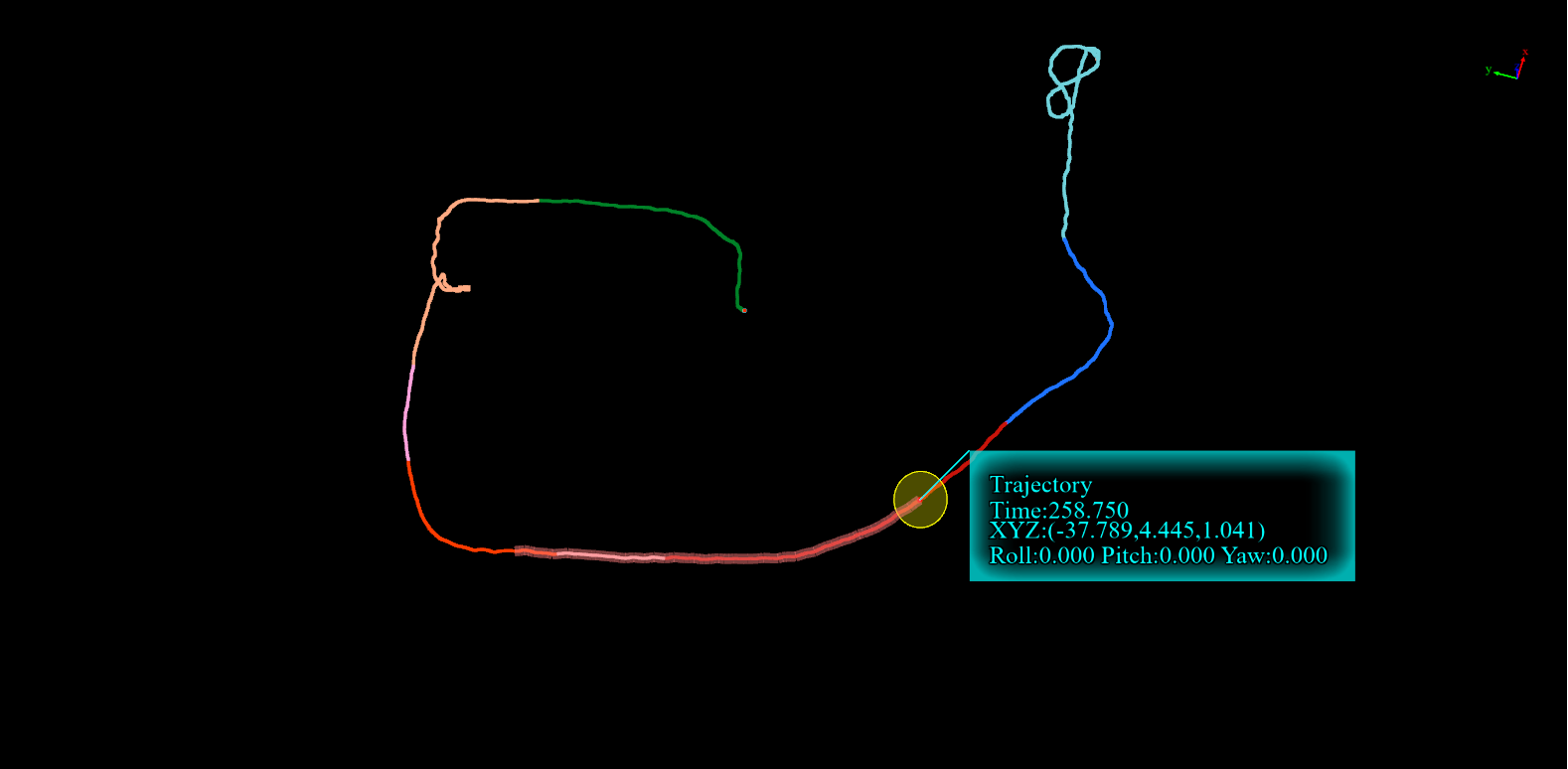

2.Click on the resulting track in the 3D display window to select the starting point of the segment.

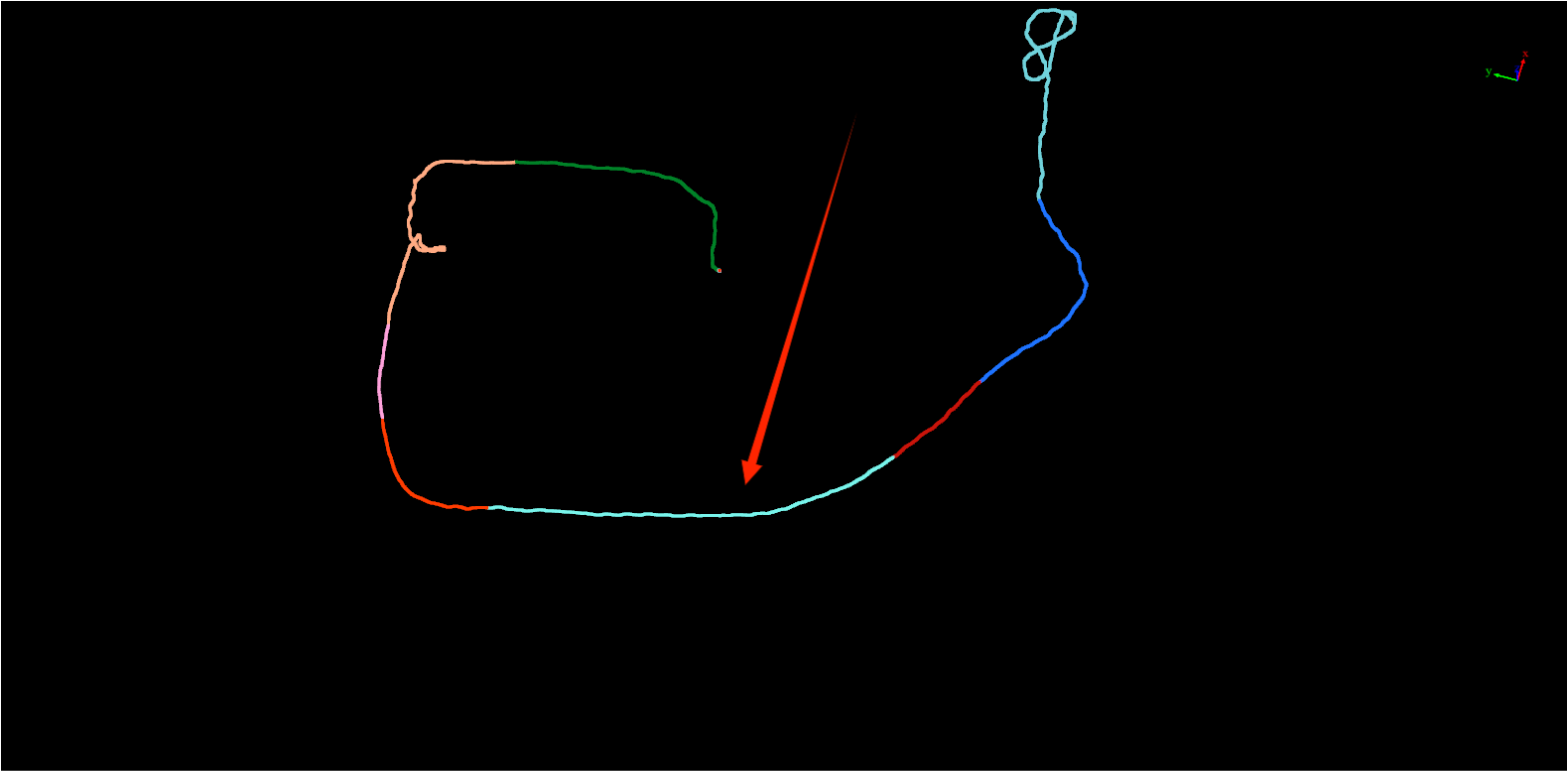

3.Select the end point of the segment along the track, and the track segment between the starting point and the end point will be divided.

Invert Select on Trajectory

Steps

1.Click Invert Select on Trajectory button.

2.Click on the resulting track in the 3D display window to select the starting point of the segment.

3.Selecting the end point of the segment along the track, and the segment in the opposite direction of the track between the starting point and the end point will be divided.
