Horizontal Rotation By Feature Attribute

Functional Description: The angle at which the facility is horizontally rotated as indicated by the value of the facility horizontal rotation attribute via the vector attribute associated with the roadway facility layer.

Steps

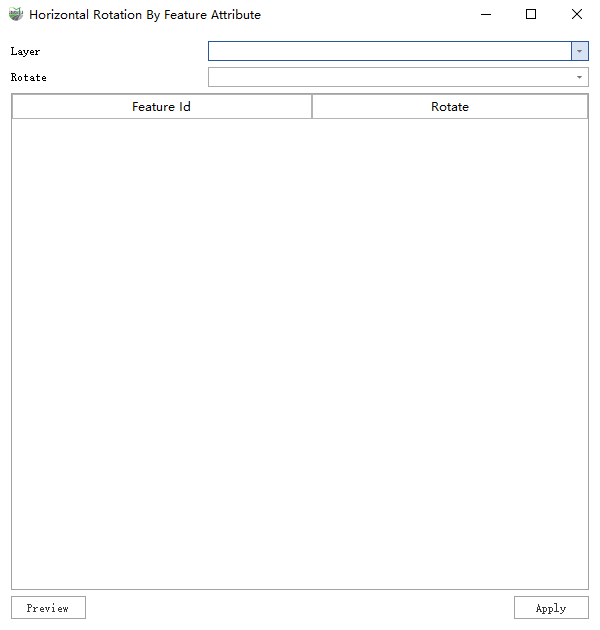

1.Click the function button to bring up the interactive dialog box.

• Layer: select the facility layer to be set up
• Rotate: associate the vector layer with the field representing the rotation

2.Select the Road Facilities layer.

3.Select the field that represents the rotation within this layer and fill in the corresponding information in the list.

• Feature Id: Feature Id of the generated facility
• Rotate: Feature attributes in degrees read from the field selected by the associated vector layer.

4.Click Preview to observe the change results and close the dialog box to discard the changes.

5.Click Apply to finalize the changes.

Note: This function ignores the previous pose. The initial direction of the model symbol, i.e., the x-axis positive, is used as the starting direction, and the right-hand coordinate system is rotated in a thumbs-up manner.
