Absolute Scale By Feature Attribute

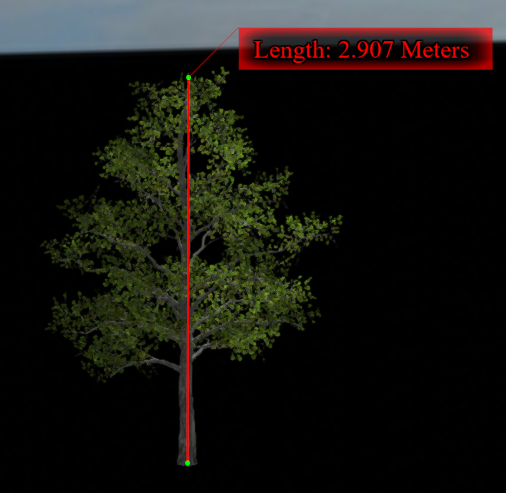

Functional Description: Set the height of the facility to the value of the Feature attribute by the vector attribute associated with the road facility layer, and scale the horizontal dimensions proportionally to the height. This function ignores the height of the model itself or the scaling set by other functions.

Steps

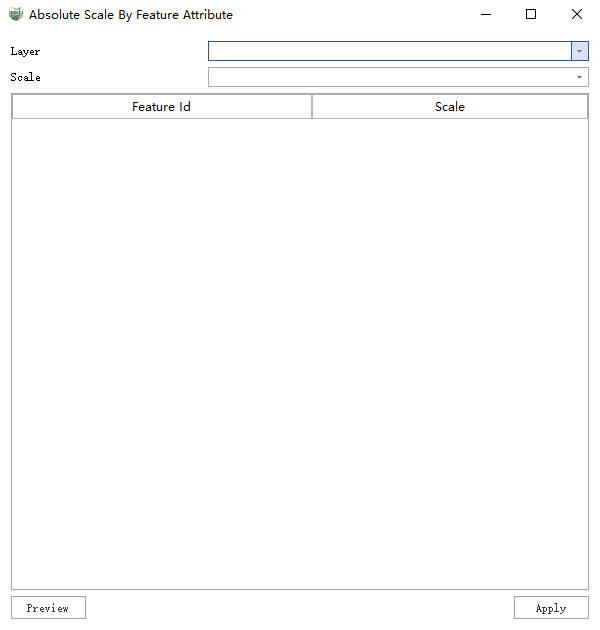

1.Click the function button to bring up the interactive dialog box.

• Layer: select the layer of the facility to be set up
• Scale: Associate vector layers to indicate the scaling field

2.Select the Road Facilities layer.

3.Select the field that represents the zoom within this layer and fill in the corresponding information in the list.

• Feature Id: Feature Id of the generated facility
• Scale: Feature attributes read from the field selected by the associated vector layer

4.Click Preview to observe the result of the changes and close the dialog box to discard the changes.

5.Click Apply to finalize the changes.
