ReShape Line
Function Description: ReShape Line allows the user to adjust and repaint of existing line objects.
Steps
1.After clicking the ReShape Line
button in the Vector Editor,move the mouse to the starting position of the line to be modified, left click to start redrawing, and double-click to end after drawing, and the line object will be redrawn.
Please ensure that the newly drawn polyline has more than two intersection points with the original line object, otherwise it will not be redrawn.
- Original line object: The object to be redrawn.

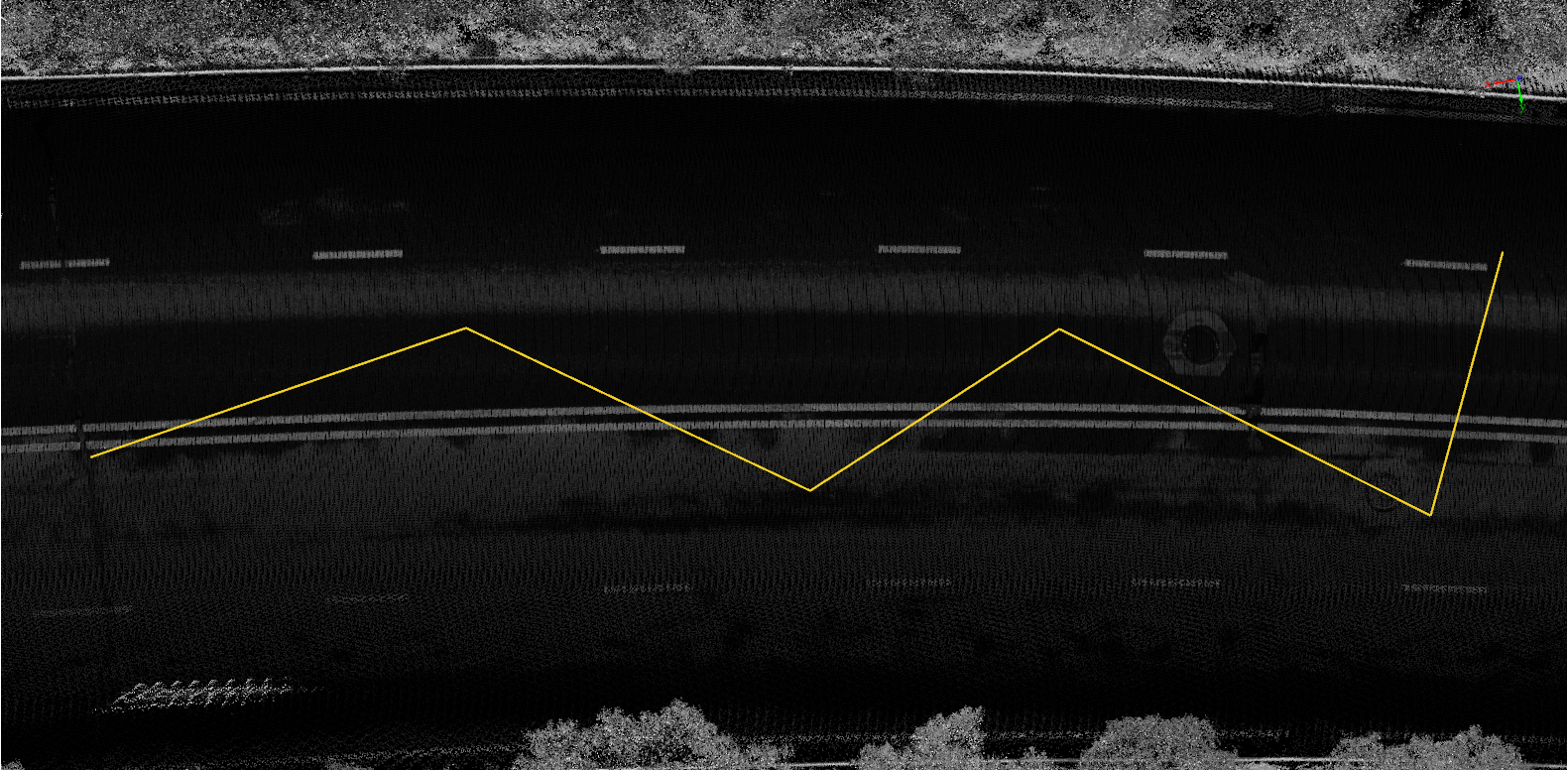

Original line object
- Drawing process: The same steps as drawing a polyline, consecutively click on each point to be redrawn , and double-click to end.
Reshape process
- Reshaped object: After the reshape is complete, the original line object will be regenerated based on the drawn line shape.
After reshape
