Tables Context Menu

Functional Overview

The right button menu of table data in the layer management tree mainly includes import and export table data, it also contains display information, display settings, zoom to layer, display by selected color, display by height, recalculate the statistics, export, and other operations for single model data.

Data Type Context Menu

• Import Data: The import data format is CSV (.csv) or a tree attribute file (.treedb). If click this function, pop-up the dialog, select data type as "Point" or "Circle", and set the specified field X, Y, Z, Diameter (if the data type is circle), and check whether to show labels.



Select data type as Point/Circle, the table file displayed as below:

• Remove All: Remove all table files from LiDAR360.

Data Context Menu

• Info: View the table's basic information, including path, the number of elements, the minimum and the maximum of X, Y, Z values.



• Open Containing Folder: Open the folder.

• Rename: Rename the file.

• Attribute Table: Display the contents of the table. As shown in the following figure, double click specific row, the window will go to the position.


  • Single-click the row or the cell in the attribute table, the corresponding data will be highlighted as shown in the following picture:


  • Double-click the row header in the attribute table. The view locates the data corresponding to the double-clicked row.

  • Freeze panes. When scrolling data with the scroll bar, only the unfrozen area scrolls.

    • Freeze by selected cell. Select a cell in the table to freeze the columns to the left of the cell and the rows above it.
    • Freeze rows. Select the row number to freeze that row and all rows above it.
    • Freeze columns. Select the header field name of the column to freeze that column and all columns to its left.

  • Hide columns.

    • Mouse dragging. Move the pointer to the boundary of a header cell until the corresponding pointer state is displayed, and then drag left or right. Dragging left reduces the column width. When it exceeds a threshold, the column is hidden; cascading hide by continued dragging is supported. A blank gap is displayed at the position of hidden columns, and dragging right expands the hidden columns.
    • Context menu. Right-click a specified header to open the menu and hide the column. You can also open the settings for all columns and modify which columns are shown or hidden.

  • Adjust column width. In addition to dragging the header manually, right-click in the header area to accurately adjust the column width for a single column or for all columns.

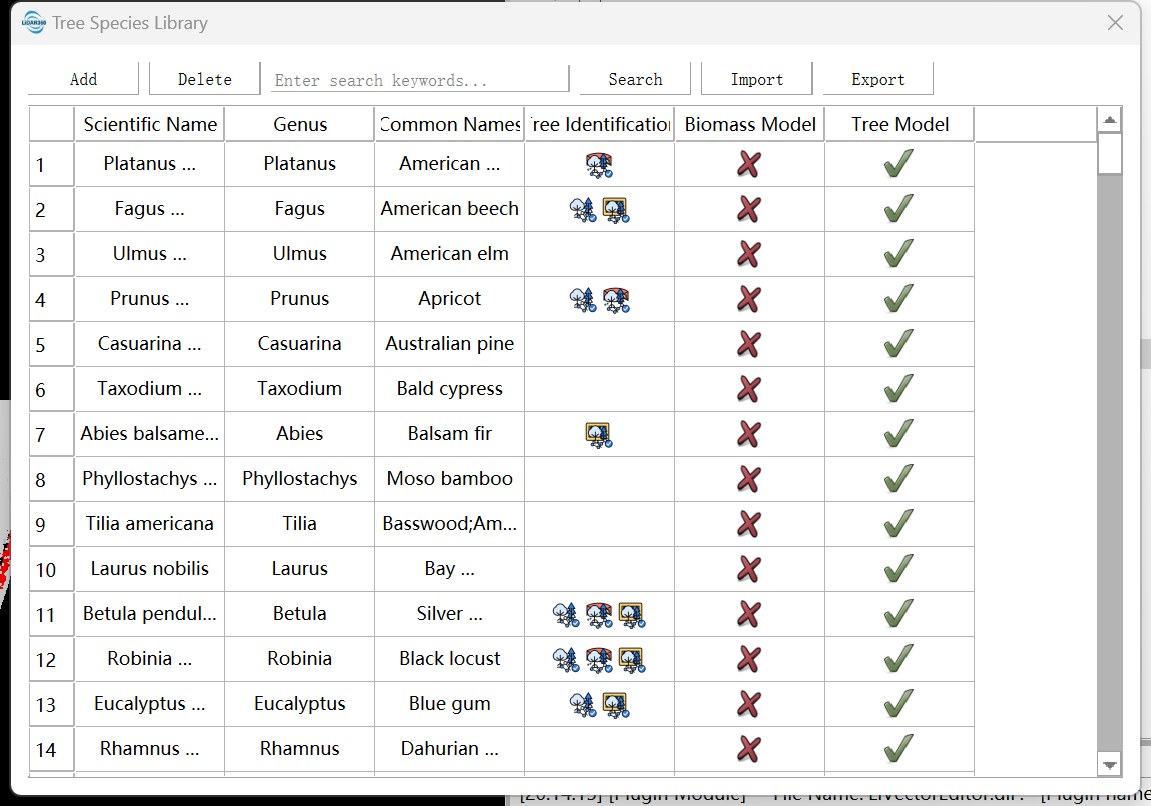

  • Tree Species List. Supports selecting names from the tree species library, which is used for editing the tree species column in the table.



  • Tree species editing. When the table is editable, if the current column is the tree species column, double-click a cell to open a drop-down list and select a tree species name added through the Tree Species List function.

• Zoom to Layer: Calculates the bounding box of the current table data, and all windows that contains this file will display globally in this bounding box range.

• View Mode: Configure the display mode for the current table data, including setting it to display as points or circles, whether to show labels, and the fields to be displayed on the labels.
• Point Size: Set the size and shape (circular or square) of the display points for the current table data.
• Label Size: Set the size of the display labels for the current table data.
• Display by Selected: Display the table data by selected color, as shown in the following picture:


• Display by Height: Correspond the elevation information of the table data to a uniformly changing color band. And display the table data on the screen as shown below:

• Remove: Remove the selected file from LiDAR360.

Note: Except "Import Data", the other function in context menu work on all windows that contains this table file.
